MINING
D RANGE
S RANGE
H RANGE
DEWATERING ● SLURRY REMOVAL ● SLUDGE REMOVAL ● FLOOD CONTROL ● PRESSURE JETTING ● TANKER LOADING ● LANDFILL PUMPING
EFFLUENT CONDITIONING ● BILGE PUMPING ● BENTONIT PUMPING ● PIPELINE MAINTENANCE ● OIL SPIL CONTROL ● SWAGE OVER-PUMPING ● DRAINAGE ● ETC
D RANGE
S RANGE
H RANGE
S RANGE
HS RANGE
PD RANGE
LT1200
LT2000
PRE DELIVERY INSPECTION (PDI) ● DELIVERY SERVICE ● COMMISSIONING ● TRAINING (OPERATION & MAINTENANCE) ● STAND BY MECHANIC / OPERATOR ON SITE
SPARE PARTS STOCK ON SITE ● PREVENTIVE MAINTENANCE PROGRAM ● EXCHANGE COMPONENT PROGRAM ● SERVICE CONTRACT MECHANIC / OPERATOR
DISTRIBUTOR TEAM REGULAR VISIT ● PRINCIPLE REGULAR VISIT ● SERVICE CAR FACILITIES ON SITE

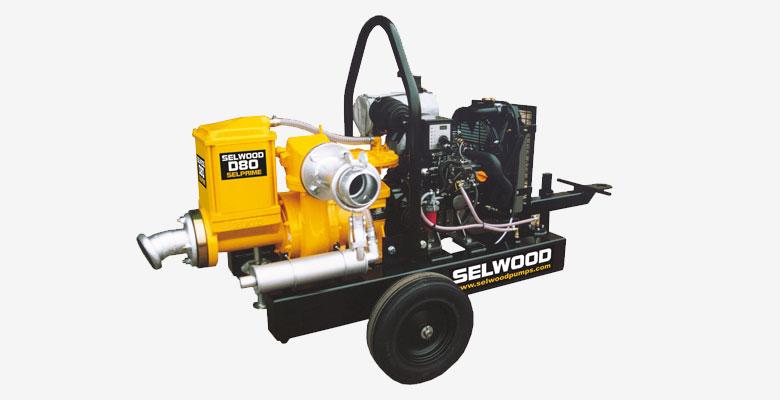

| Specfication | D75 | D80 | D100 | D150 | D200 | |
|---|---|---|---|---|---|---|
| Capacity | m3/h | 59 | 90 | 120 | 380 | 600 |
| Max Head (H) | m | 23.5 | 23 | 26 | 40.5 | 37.5 |
| Pump Speed | RPM | 2000 | 2000 | 2000 | 2000 | 1500 |
| Inlet/Outlet Port | mm | 75 | 80 | 100 | 150 | 200 |
| Max Solid Size | mm | 29 | 29 | 29 | 45 | 55 |

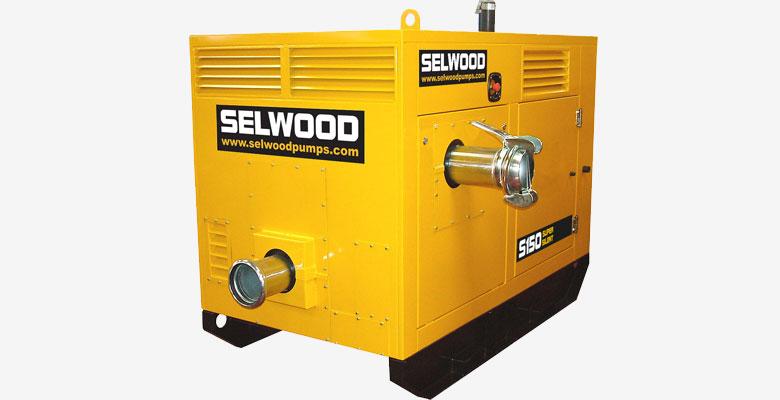

| Specfication | S100 | S150 | S200 | S300 | |
|---|---|---|---|---|---|
| Max Flow Rate | m3/h | 225 | 320 | - | - |
| Capacity | m3/h | - | - | 560 | 1200 |
| Shut-off Head (H) | m | 80 | 23 | - | - |
| Total Head | m | - | - | 23 | 37 |
| Speed | RPM | - | - | 1600 | 1500 |
| Inlet/Outlet Port | mm | 100/100 | 150/150 | 200 | 300 |
| Max Solid Size | mm | 30 | 100 | 100 | 100 |
| Couple with Engine | Mitsubishi 6D14-1A |
Caterpillar C2.2 Acert |
- | - | |

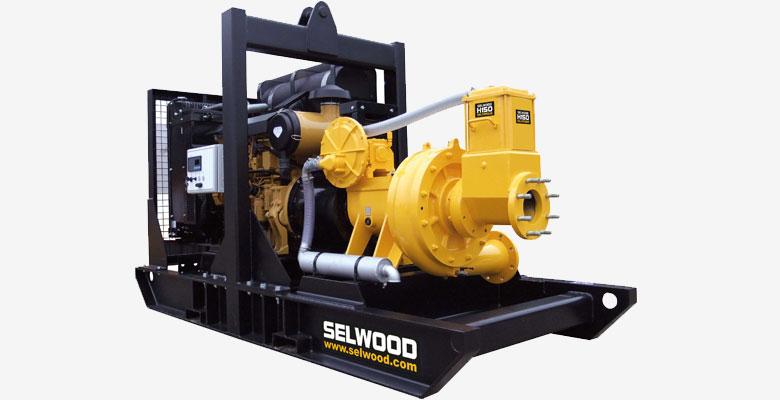

| Specfication | H150C5 | H150HS | HH200C5 | HH200HS | |
|---|---|---|---|---|---|
| Max Flow Rate | m3/h | 500 | 500 | 1000 | 1000 |
| Shut-off Head (H) | m | 90 | 130 | 140 | 170 |
| Speed | RPM | - | - | 1400 | 1600 |
| Inlet/Outlet Port | mm | 150/150 | 150/150 | 200/200 | 200/200 |
| Max Solid Size | mm | 38 | 38 | 60 | 60 |
| Couple with Engine | Caterpillar C7.1 Acert |
Caterpillar C9 Acert |
Caterpillar C18 Acert |
Caterpillar C27 Acert |
|

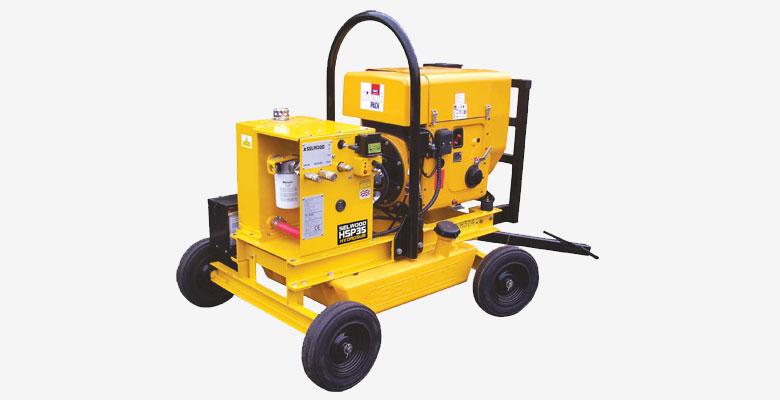

| Specfication | HS150SC |
|---|---|
| Capacity | 420 m3/h |
| Max Head (H) | 41 m |
| Pump Speed | 1586 ~ 1874 RPM |
| Max Solid Size | 75 mm |

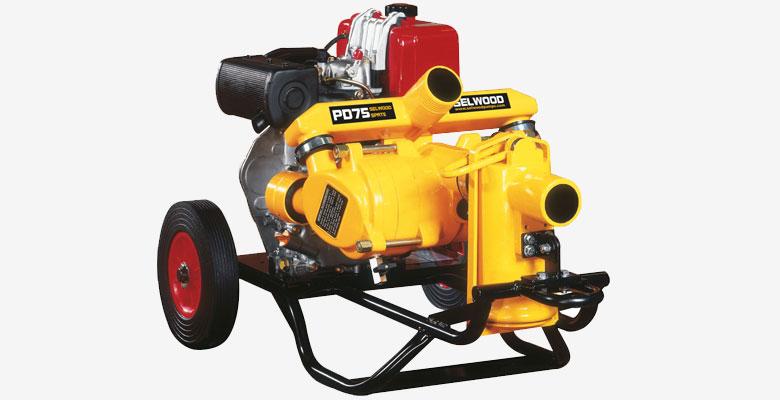

| Specfication | PD75 | PD100 | |
|---|---|---|---|
| Capacity | m3/h | 30 | 77 |
| Max Head (H) | m | 30.5 | 20 |
| Pump Speed | RPM | 1450 | 1000 |
| Inlet/Outlet Port | mm | 75 | 100 |
| Max Solid Size | mm | 6 | 16 |

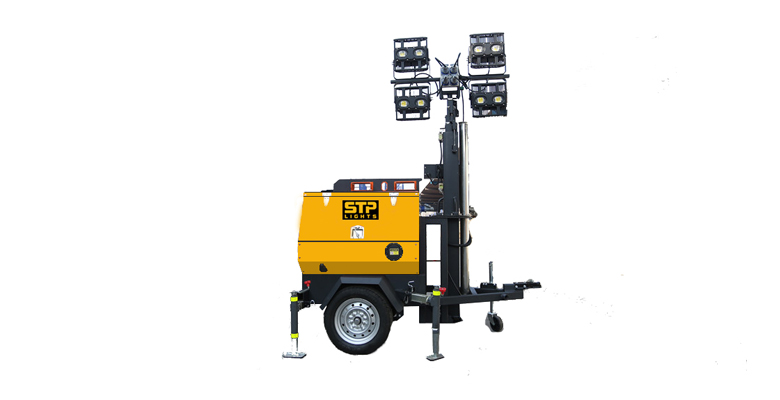

| Specfication | L T1200 | |
|---|---|---|
| Dimension | Length | 1900mm |
| Width | 1100mm | |
| Height | 2970mm | |
| Loading container height | 2550mm | |
| Full extending height | 9m | |
| Genset Power (1500/1800rpm-KW) | 3/3.5 | |
| Gross Weight | TBA | |
| Engine | Model | Z482 |
| Speed (rpm) | 1500/1800 | |
| Number of Cylinders | 2 | |
| Engine Characters | 4 cycles, Water-cooled diesel | |
| Combustion System | Direct injection | |
| Engine Aspiration | Naturally aspirated | |
| Emission Level (50Hz) | Regular | |
| Alternator | Model | Mecc alte LT3N-75/4 |
| Frequency (HZ) | 50/60 | |
| Rating voltage (50Hz) | 220/llOV (50HZ), 240/120 (60HZ) AC | |
| Alternator insulation | Class H | |
| Alternator protection grade | IP23 | |
| Mast & Light | Type of Lights | LED Light |
| Light's fixture | Rectangle | |
| Luminous flux | 132000(4 *33000) | |
| Number & power of lights | 4x300W | |
| Number of mast sections | 6 | |
| Mast extension | Electrical (Vertical, 3500 lb winch) | |
| Mast rotation | 359° Manual rotation with self locking | |
| Light tilt | Manually | |
| Additional Features | Stabilizing legs & number | 4 pcs drawble bar with manual jacks |
| Fuel tank type | Double wall | |
| Fuel Tank Capacity | 260 liters | |
| Operating hours with full load | 205/185 hours | |
| Generator starting type or controler | HGMl 1780 (SMARTGEN) | |
| Power outlet sockets | 1 | |
| Max. against wind when fully extended | 17.5 m/s | |
| Acoustic pressure | 77dB(A) at 7 meters away | |
| Max.# of units loading in 40' high container (Some components would be detached) | 12 |

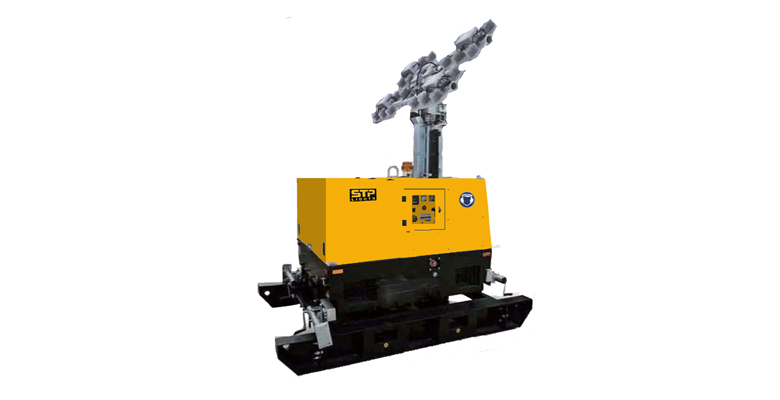

| Specfication | L T2000 | |
|---|---|---|
| Dimension | Length | 2300mm |
| Width | 1360mm | |
| Height | 2900mm | |
| Loading container height | 2280mm | |
| Full extending height | 9m | |
| Genset Power (1500/1800rpm-KW) | 3/3.5 | |
| Gross Weight | 1110 kg | |
| Engine | Model | Z482 |
| Speed (rpm) | 1500/1800 | |
| Number of Cylinders | 2 | |
| Engine Characters | 4 cycles, Water-cooled diesel | |
| Combustion System | Direct injection | |
| Engine Aspiration | Naturally aspirated | |
| Emission Level (50Hz) | Regular | |
| Alternator | Model | Mecc alte LT3N-75/4 |
| Frequency (HZ) | 50/60 | |
| Rating voltage (50Hz) | 220/llOV (50HZ), 240/120 (60HZ) AC | |
| Alternator insulation | Class H | |
| Alternator protection grade | IP23 | |
| Mast & Light | Type of Lights | LED Light |
| Light's fixture | Rectangle | |
| Luminous flux | 132000(4 *33000) | |
| Number & power of lights | 4x500W | |
| Number of mast sections | 6 | |
| Mast extension | Hydraulic Type & 9m height | |
| Mast rotation | 359° Manual rotation with self locking | |
| Light tilt | Manually | |
| Additional Features | Stabilizing legs & number | 4 pcs drawble bar with manual jacks |
| Fuel tank type | Rotational moulding plastic | |
| Fuel Tank Capacity | 100 liters | |
| Operating hours with full load | 50 hours | |
| Generator starting type or controler | HGMl 1780 (SMARTGEN) | |
| Power outlet sockets | 1 | |
| Max. against wind when fully extended | 17.5 m/s | |
| Acoustic pressure | 77dB(A) at 7 meters away | |
| Max.# of units loading in 40' high container (Some components would be detached) | 9 |
